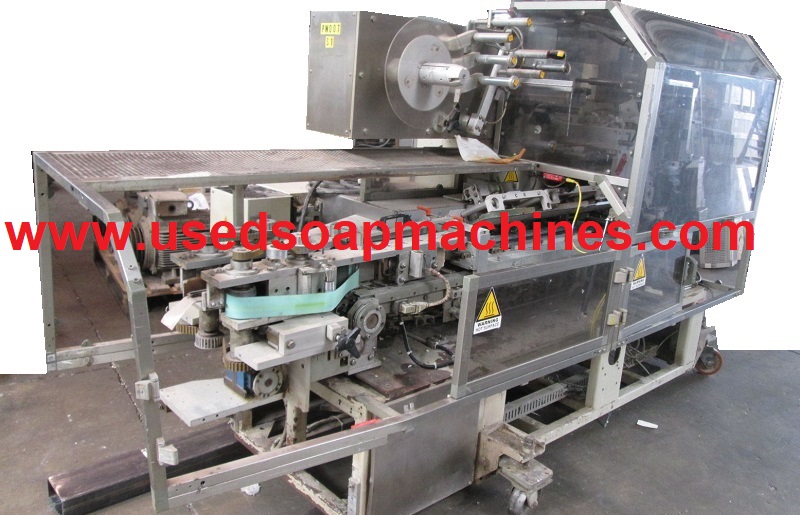

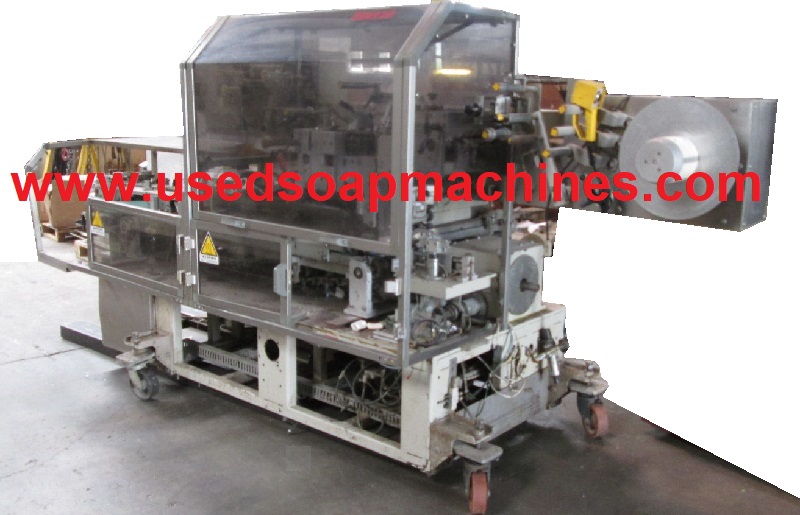

SOAP WRAPPER "GUERZE PS9"
The Guerze Packsavon PS9 bar soap packaging machine is a versatile dual-purpose unit designed:
- to wrap banded and bandless standard size and hotel size bars, in the traditional double-point end fold style, from roll fed heat sealable wrapping paper.
- to carton banded hotel size soaps with cartons taken from a blank magazine or alternately on the same machine, to paper wrap banded hotel size bars in the traditional double-point end fold style with hot-melt sealing.
MAIN FEATURES:
- Flat belt infeed system for banded bars.
- Pocketed timing belt with four suction cup turret infeed system for bandless bars.
- Roll fed heat sealing outerwrap.
- Roll fed innerwrap (stiffener).
- Magazine fed pre-cut outerwrap for hotel size soaps (upon request).
- PLC controlled cam operated machine movements.
- Variable Frequency Drive.
- Electronically interlocked PVC safely guards.
- Centralized lubrication system.
SPECIFICATIONS
- Soap Wrapping speed: up to 180 soaps per minute
- Soap Length range: from 55 to 95 mm
- Soap Width range: from 35 to 60 mm
- Soap Thickness range: from 15 to 30 mm
