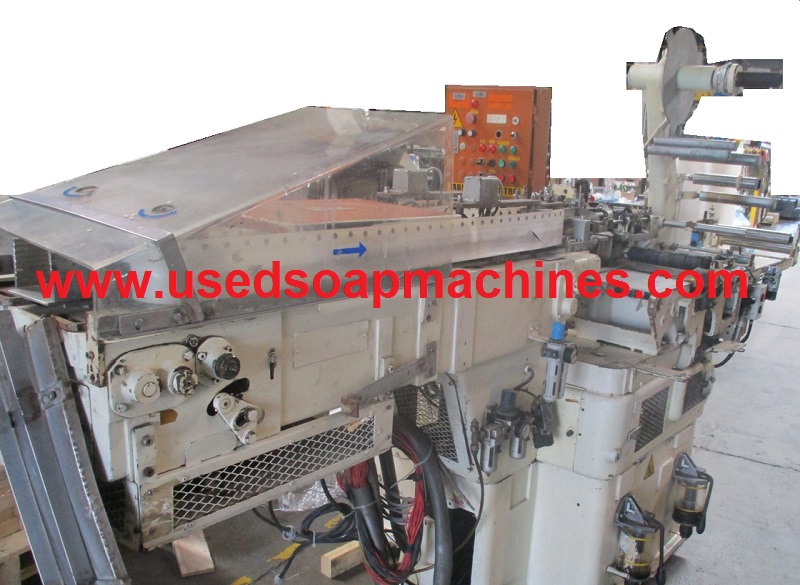

SOAP WRAPPER "ACMA 781"
The soap wrapping machine ACMA 781 has been designed for simple wrapping
of rectangular soaps of small and medium dimensions, The machine works with
unsupported and compound plastic materials as well as with coated foils, taken
from reel.
There are two reel supports. It is possible to substitute one reel
holder with an additional device which applies a tear tape. When the packaging material is printed
with centering spots, a photocell controls its feeding.
A typical example of application is the wrapping of laundry soap bars
with PP or similar material.
The laundry soap bars are pushed onto the continuously running infeed belt and
are carried forward onto an elevator plate where they receive the cut foil.
Product infeed of wrapping material from reel and cutting of wrapping
material photocell print registration device
During the upward movement of the elevator plate, the blank is partially
put around the soap. During the subsequent horizontal forwarding of the soap
bars, the wrap is completed on the bottom side and moving and stationary
folding elements fold in the head sides,
As to the kind of material, the bottom and head sides are heat-sealed or
welded. During this
action, the soap bars are carried on in the compression unit which
consists of two vertical belts and a plastic bottom belt.
The heating and cooling plates are placed within the compression belts.
Three thermostats are regulated in such a way that a constant welding
temperature can be maintained.
ACMA 781 SPECIFICATIONS
- Soap Wrapping speed: up to 130 soaps per minute
- Soap Length range: from 60 to 145 mm
- Soap Width range: from 35 to 75 mm
- Soap Thickness range: from 25 to 70 mm
